Longyi Cable Insulated PVC Ring Terminal Lug

  • Longyi Cable Insulated PVC Ring Terminal Lug
  • Longyi Cable Insulated PVC Ring Terminal Lug
  • Longyi Cable Insulated PVC Ring Terminal Lug
  • Longyi Cable Insulated PVC Ring Terminal Lug

Longyi Cable Insulated PVC Ring Terminal Lug

    Unit Price: 0.01~0.1 USD
    Min. Order: 1000 Piece/Pieces
    Packaging: After sealed bags are packed, boxes are packed, boxes are packed, and trays are packed
    Productivity: 100000
    Brand: LONGYI
    Transportation: Land,Air,Express,Ocean
    Place of Origin: JIANGSU TAIXING
    Supply Ability: 1000000000kpcs/Year
    Certificate: ISO9001
    HS Code: 8536909000
    Port: Shanghai

Basic Info

Model No.: VF2-4YS

Product Description


The application of copper terminal is very extensive, in the industry is mainly to act as a connector, some electrical connection. Copper terminals can ensure the reliability and convenience of electrical circuit connection. The copper terminal is at the end of the wire and then use the special crimping pliers to connect the copper terminal to the wire and then fix the Cold-pressed Terminal in the position you want to fix it. Usually copper terminal material is red copper, brass or phosphor bronze car system, its yield strength is low, good plasticity, and parts for axisymmetric shape, especially suitable for cold extrusion forming. Note the following when using copper terminals:
1. Tighten the wiring with moderate force to prevent excessive force from causing the sliding bolt. If the sliding bolt and nut are found to be replaced in time, immediate operation is strictly prohibited.
2. When fastening or loosening the screws with a screwdriver, it is necessary to tighten the screws forcibly, and then tighten or loosen them to prevent the screwdriver and the screws from slipping, resulting in screw damage and not easy to disassemble, especially the empty boxes commonly used in the hanging box.
3, found that it is difficult to disassemble bolts and nuts, can not be reckless operation, to prevent deformation and more difficult to disassemble, should be properly knocked, or add bolt loosening agent, dilute hydrochloric acid and so on after disassembly.

Spade insulated terminals

1, cable lugs are suitable for the connection of copper conductors (section 1.25-8mm2) in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
7, Attribute: Pre-insulated, blade shape

The company has more than 95% of the full automatic production lines, nissan 200 tons, production capacity continues to adjust and expand, to meet the challenge of the market at any time.
Through the European CE safety certification, American UL safety certification, the company has a SC Japan JIS standard, the German DIN standards, AWG American standards, etc.
Companies always adhere to: quality first, service first, from raw materials into the factory inspection, process inspection to every working procedure, outbound packaging cengcengbaguan .
Company has own copper pipe, copper strip, copper platoon of raw material processing factory, with strong competitive advantage price on equal quality to every guest get the maximum benefits.

Longyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal LugLongyi Cable Insulated PVC Ring Terminal Lug


PART NO ITEM NO WIRE RANGE DIMENSIONS
AWG/MCM mm 2 ΦE ΦD Φd W B L COLOR
LY0020-1001 VF1.25-3YS 22-16 0.25-1.65 3.7 4.0 1.7 5.7 10.4 21.8 RED
LY0020-1002 VF1.25-3YW 3.7 4.0 1.7 6.2 10.4 21.8
LY0020-1003 VF1.25-3YSA 3.2 4.0 1.7 5.7 10.4 21.8
LY0020-1004 VF1.25-4YS 4.3 4.0 1.7 6.4 10.4 21.8
LY0020-1005 VF1.25-4YW 4.3 4.0 1.7 7.2 10.4 21.8
LY0020-1006 VF1.25-5Y 5.3 4.0 1.7 8.0 10.4 21.8
LY0020-1007 VF1.25-6Y 6.7 4.0 1.7 10.7 10.4 21.8
LY0020-1008 VF2-3YS 16-14 1.04-2.63 3.7 4.6 2.3 5.7 10.4 21.8 BLUE
LY0020-1009 VF2-3YSA 3.2 4.6 2.3 5.7 10.4 21.8
LY0020-1010 VF2-3YW 3.7 4.6 2.3 6.2 10.4 21.8
LY0020-1011 VF2-4YS 4.3 4.6 2.3 6.4 10.4 21.8
LY0020-1012 VF2-4YW 4.3 4.6 2.3 7.2 10.4 21.8
LY0020-1013 VF2-5Y 5.3 4.6 2.3 8.0 10.4 21.8
LY0020-1014 VF2-6Y 6.7 4.6 2.3 10.7 10.4 21.8
LY0020-1015 VF3.5-4Y 12-10 2.63-4.60 4.3 5.6 3.2 8.0 13.3 24.8 YELLOW
LY0020-1016 VF3.5-5Y 5.3 5.6 3.2 8.0 13.3 24.8
LY0020-1017 VF5.5-3Y 12-10 4.60-6.64 3.7 6.6 3.5 8.2 13.6 26.5 YELLOW
LY0020-1018 VF5.5-4Y 4.3 6.6 3.5 8.2 13.6 26.5
LY0020-1019 VF5.5-5Y 5.3 6.6 3.5 9.0 13.6 26.5
LY0020-1020 VF5.5-6Y 6.4 6.6 3.5 12.0 13.6 31.2
LY0020-1021 VF8-5Y 8 6.64-10.52 5.3 8.3 4.5 9.0 17.5 29.5 RED
LY0020-1022 VF8-6Y 6.7 8.3 4.5 12.0 17.5 32.0

Taixing Longyi Terminals Co.,Ltd.

  • 1
  • 2
  • 3
  • 4
  • 5

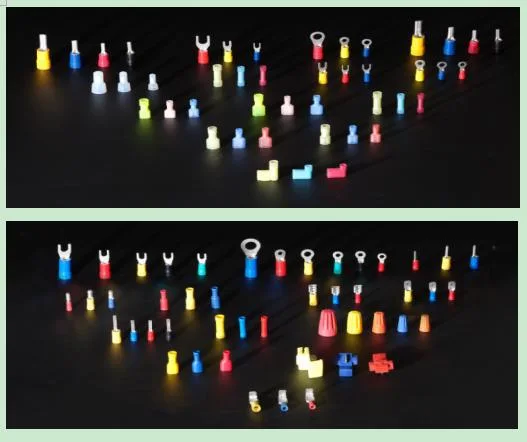

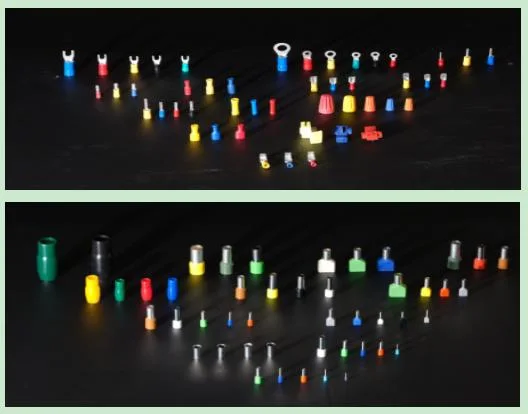

 Taixing Longyi Terminals Co.,LTD.,which locates at Taixing city, Jiangsu Province, and was founded in 1991. The company is a professional manufacturer that coalizes design, development and production of cold pressed terminals(also called terminals or connectors). The company specializes in producing and selling regular SC copper lugs, T copper lugs, German standard DIN copper lugs, National standard DT copper lugs,pre-insulated terminals, PVC & Nylon insulated terminals,LT cord-end terminals, and many other types, with more than ten thousands of kinds. We can also design and produce according to the special requests of customers; the annual production capacity has several billions, and the weight is more than 2000 tons, Meanwhile, the company also produces and sells all kinds of national standard, non-standard copper pipes, copper sheets, copper plates, copper bars and other special copper products. The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc. The company owns advanced automatic production line. The molds for making products are all designed and made in our own factory. The raw material,copper pipe is also produced by ourselves, which strongly guarantees the purity and electrical conductivity of the copper, and the best quality of the products. The company has passed ISO9001-2015 system, the products are in accordance with ROHS, European CE.and American UL certificate. Longyi Terminals is famous products, and Longyi brand has been awarded as famous brand in Taizhou City. Longyi always follows the business concept of"Honesty is the best policy, technology thrive enterprise,innovation first and Customer first" and adheres to the quality policy of "continuous improvement, create first-class product, satisfy customers' requirements". We will gradually realizing the ambitious goal of"Longyi Terminals, link to the world" General Manager, Guo Jianguo, warmly welcomes customers from home and abroad to visit our company for guidance and business negotiation! To create a bright future together.

Company Info

  • Company Name: Taixing Longyi Terminals Co.,Ltd.
  • Representative: GUOYULONG

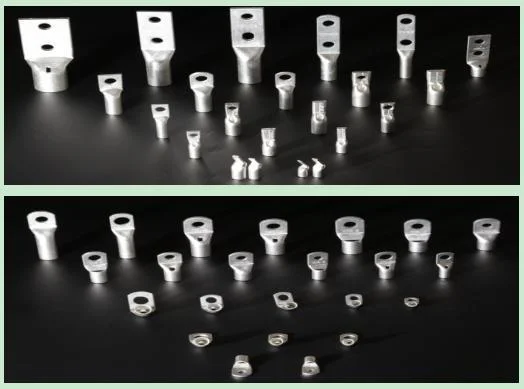

  • Product/Service: Copper Lugs , Copper Terminals , Insulated Terminals , Copper Tube Terminals , Cold-pressed Terminal , Non-insulated Tubular Lugs Terminals
  • Capital (Million US $): 1500000RMB
  • Year Established: 1991
  • Total Annual Sales Volume (Million US $): Above US$100 Million
  • Export Percentage: 11% - 20%
  • Total Annual Purchase Volume (Million US $): Above US$100 Million
  • No. of Production Lines: 7
  • No. of R&D Staff: 5 -10 People
  • No. of QC Staff: 5 -10 People
  • OEM Services Provided: yes

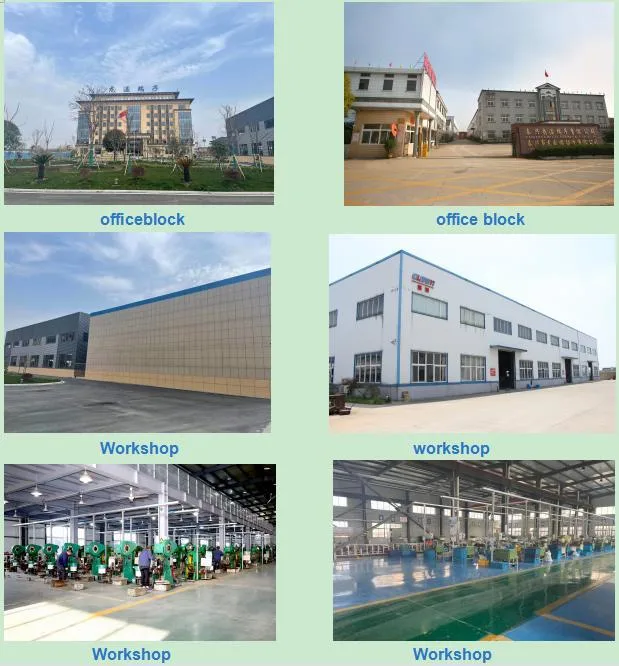

  • Factory Size (Sq.meters): 3,000-5,000 square meters
